G.P.S
GPS Antenna
| Model | Standard Antenna |
|---|---|
| Type | Active, External |
| Gain | 28 ± 2 dB |
| Operating Temp | -40° to 85°C |
| Voltage | 3-5 V |
| Impedance | 50 Ω |
| Connector | SMA Female |
Surge Arrestor
| Model | SMA – SA90 |
|---|---|
| Frequency | 0 – 2.8 ㎓ |
| Surge Discharge Current | 10㎄ |
| Operating Temp | -40° to 85°C |
| RF Power Rating | 15W |
| Impedance | 50 Ω |
| Connector | SMA Male |

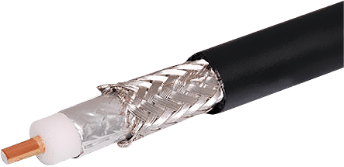

Antenna Cable
| Model | LMR-400 |
|---|---|
| Cutoff Frequency | 16.2 GHz |
| Velocity of Propagation | 85% |
| Voltage Withstand | 2,500 VDC |
| Peak Power | 16 kw |
| Impedance | 50 Ω |
| Inductance | 0.20 uH/m |
| Shield Effectiveness | >90 dB |
Rack Mount Kit
- Model : RM4
- Standard 1RU
- Houses up to 4 Masterclock units
- Blank panels are supplied for any unused spaces
- Components can be easily installed or removed in the field

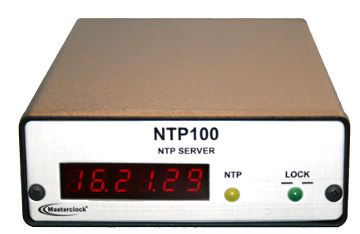

NTP Server
| Model | NTP 100 |
|---|---|
| Connector | Ethernet RJ45 10/100 Mbps RS 232 (9pin male) Antenna - SMA |
| Power | 9-28 VDC |
| Temperature | 0 to 60°C |
| Humidity | Up to 90% (non-condensing) |

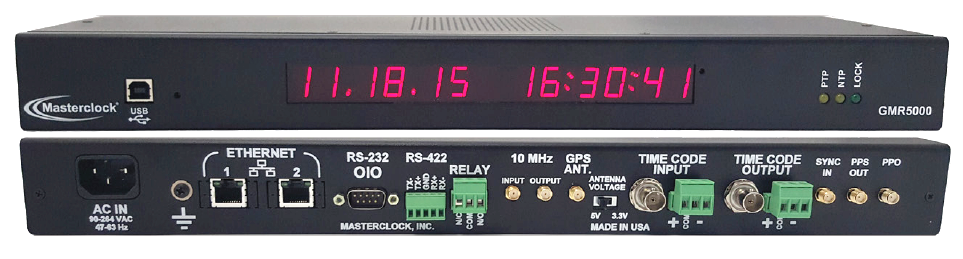

| Model | GMR-5000 |
|---|---|
| Connector | Ethernet RJ45 10/100 Mbps RS 232 / 422 Antenna - SMA |
| Time Code | IRIG-B0/B1, SMPTE 12M |
| Power | 90-264 VAC, 47-63Hz |
| Temperature | 0 to 60°C |
| Humidity | Up to 90% (non-condensing) |

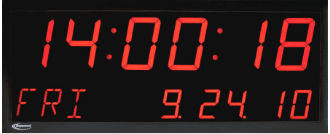

Digital Clock
| Model | NTDS46 |
|---|---|
| Standard Features | Red / Green / Blue / Amber / White |
| Connector | Ethernet RJ45 |
| Power | POE or DC (24 VDC) |
| Temperature | 0 to 60°C |
| Humidity | Up to 90% (non-condensing) |
| Size | 633(W) x 59(D) x 174(H)mm |
| Weight | 4.5kg |
| Model | NTDS4626-3AL |
|---|---|
| Standard Features | Red / Green / Blue / Amber / White |
| Connector | Ethernet RJ45 |
| Power | POE or DC (24 VDC) |
| Temperature | 0 to 60°C |
| Humidity | Up to 90% (non-condensing) |
| Size | 648(W) x 58(D) x 264(H)mm |
| Weight | 5.0kg |
